R Series

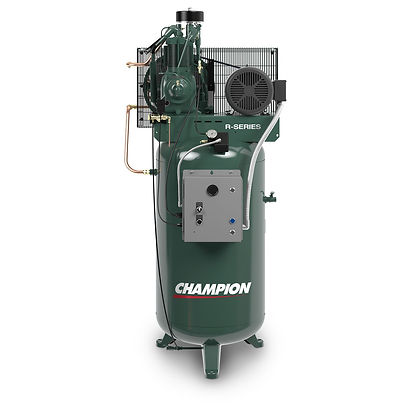

Champion Pneumatics R Series Compressor

Two Stage, Splash Lubricated (2-30 HP) Reciprocating Air Compressor

Champion R-Series Compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the R-Series compressors the solution to your application. Delivering high performance, long life and tremendous value. Champion compressors are the proven choice!

Specifications and Features

  • 2 - 30 HP

  • Up to 175 PSIG

  • 4.2 - 202 ACFM at 175 PSIG on electric driven units

  • Mounted Dryer/AirStation option with XCNC dryer available on certain select simplex models

  • Gas and diesel engine drive models available

  • Tank or Base Mounted, Simplex & Duplex Models

  • Two Stage Splash-Lubricated Pumps

  • 3 year standard warranty with the option for a 6 year extended warranty

  • Factory filled with ChampLub lubricant

Features

  • Load-less starting (via centrifugal unloader) for lower energy costs and less wear on drive motor

  • ASME inter-stage pressure relief valve for protection

  • ODP NEMA 1760 RPM electric motor

  • 10 Micron industrial grade intake filter

  • ASME coded receiver

  • 0-300 PSIG air pressure gauge on tank

  • Available voltages

    • Single phase-115/208-230

    • Three phase-208/230/460/575

Available Options

  • Multiple tank sizes and variations

  • Electric or engine driven

  • NEMA 4 full-voltage starter upgrade

  • ODP HE/TEFC/TEFC HE motor upgrades

  • Control panel upgrades

  • Air-cooled with or without moisture separator

  • Low oil-level monitor (NEMA 1 or 4)

  • Dual control

  • Vibration isolators

  • Synthetic lubricant

  • High temperature switch (NEMA 1 or 4)

  • Available switches (NEMA 1 or 4)

    • Test/Off/Auto

  • Automatic tank drain - Electric

Benefits

  • Multi-Finned Cylinders for Cooler Operating Temperatures

  • Integral Cylinder/Head Design for Trouble-Free Operation

  • Balanced Pistons

  • Piston Rings Provide Excellent Oil Control and High Efficiency

  • Lightweight, Two-Piece Connecting Rods

  • Pressure Relief Valves

  • Large Diameter Finned Intercoolers

  • Optimized Cooling Fan/Flywheel

  • Reliable High-Flow Disc Valves

  • Tapered Roller Main Bearings

  • Balanced Crankshaft

  • Large Capacity Cast-Iron Crankcase

  • Centrifugal Unloader for Minimized Starting Power & Completely Load-Less Starting
